<feature name="export"> Element - Schema Reference

Definition

The BOM Export feature allows you to create multiple export profiles, each defining the contents and permissions for users when generating detailed reports and exporting data and files from Highstage.

Elements

Overview

Overview of the elements and attributes that are associated with the <feature name="export"/> element.

Details

Details on each element's purpose, function, and attributes.

feature/profile

Each profile element (with a unique name) will be available for users to choose from when exporting objects of that type.

feature/profile/type

The <type> element is optional, but it gives you control over what data columns are exported for each object type.

Use the <type> element when you want to customize what data is shown and exported — for example, if the default reference view in Highstage doesn't match what you want to export for any specific object type in your BOM.

You can, for any type:

• Use an existing grid, and/or;

• Define your own data columns to preview and export.

Note: If you want to include reference columns, then you have to define a grid.

If no <type> element is defined:

• The system will automatically use the default grid linked to that object type.

• The exported data will match what is shown in the reference sections.

This default grid uses the ref-columns attribute to decide which columns to show.

Important merging data across types using titles If two or more data columns have the same title, across types, they will be combined into a single column in the preview and reports. This helps consolidate related information across different types.

Defining a type without content? If a <type> is defined without any defined <column> elements nor grid attribute, then we only preview and export the level and object columns.

Example:

1
<profile name="simple">
2
    <type name="doc"></type>
3
</profile>

If your export profile includes a <type> element but does not define a grid or any <column> elements, only the following data will be shown in the preview and export for any documents in the BOM:

• level – the document’s placement in the BOM

• Object – the document's object name

No other data will be included unless you explicitly define it.

feature/profile/type/column

To display and export a specific data column, or to change its title, add a <column> element under its related <type>. In other words, use the column element to control which data columns are shown and exported for a specific object type (and also to define the order of occurrence in the reports).

feature/profile/report

The report element defines the settings, appearance, and content of a single generated export report of a specific filetype (supporting .xlsx, .html, and .pdf).

feature/profile/report/resource

Item containing template file for specific reports (may be required by certain report elements).

Note: It is only possible to use objects that have an associated folder. This includes Documents, Actions, Parts, Devices, and other item-based types. Objects without a folder cannot be used.

feature/profile/attachment

Note: It is only possible to use objects that have an associated folder. This includes Documents, Actions, Parts, Devices, and other item-based types. Objects without a folder cannot be used.

The attachment element allows you to include additional files in your export, such as instructions for reading the export content, even if they are not part of the exported structure.

Attachments (files associated with the attached objects) will always be placed in the root folder of the exported contents.

Report generators

Export reports in Highstage are highly customizable to meet the different needs and preferences of each organization. These reports contain all data linked to the exported BOM.

To support this flexibility, Highstage lets you create your own dynamic report generators. You can define the file type, layout, formatting, and most importantly—the content of the export reports.

Highstage supports four standard report formats and also allows for dynamic report generators. Dynamic report generation lets customers implement their own custom report formats.

A set of built-in generators is included in Highstage to handle the most common use cases. For more advanced needs—such as data processing, merging, summarizing, or using custom file formats—you can create your own dynamic report generators.

By creating custom .aspx files and linking them to a report as a generator, you gain full control over the report generation. The interface gives access to all export data, so you can fully define the structure and content of your custom reports.

Standard report formats

The four standard reports prints all data included in the export profile. Highstage includes four ready-to-use report generators that can be used in the <report> element:

• HighstageExcel Outputs an Excel file (.Xlsx) showing the BOM structure and data using the columns defined in your export profile setup.

• HighstageHtml Produces an Html report (.Html) that lists the BOM structure and data using the columns defined in your export profile setup. Similar to the structure and data of HighstageExcel.

• HighstageJson Outputs a compact Json (.Json) file for use in systems or scripts. It uses raw data values instead of data column titles (e.g, status will return 1 instead of working).

• HighstageTemplatedExcel Lets you use your own Excel file as a layout template. The export fills in your template with data, letting you control layout, sheets, and styling.

Guides and Samples

Standard export profile definition

This export profile is distributed by default with Highstage for all standard types that have an associated folder (including Documents, Actions, Parts, Devices):

xxxxxxxxxx
10
1
<type name="ts_item">
2
  <feature name="export">
3
    <profile name="default"
4
             included-types="*"
5
             regex-file-pattern="^[^~].*"
6
             filename="~export-@[o]-@[safe-datetime]"
7
             foldername="~exports"
8
             export-roles="Resource;Resources;Manager;TeamMember;SuperUser">
9
    </profile>
10
      </type>

• name: Name of export profile (shown to end user when selecting which profile to use).

• included-types: Export will include all objects of any type (* represents all).

• regex-file-pattern: A regular expression that excludes all files starting with ~ from the export (but includes everything else).

• filename: The filename of the export package (e.g, ~export-ASM12345-4-2025-06-16T1229.ZIP).

• foldername: In the folder of the object you are exporting from, a folder named ~exports will be created to store the export packages.

• export-roles: In this case, only users with one or more of the listed vector roles on the object are allowed to export using this profile.

Note: This profile does not include any type definitions. The export will include the same data columns shown in the reference sections for the objects in your BOM (as defined in the ref-columns attribute on the <grid> element used by default for any object type).

Using default report generators

About

Highstage includes four ready-to-use report generators that can be used in the <report> element as introduced here.

This is an example of a profile that creates 4 unique reports for every successfully executed export, using all the default generators; HighstageExcel, HighstageHtml, HighstageJson, and HighstageTemplatedExcel (defined as values in the generator attribute for each <report> element):

xxxxxxxxxx
17
1
<type name="part">
2
        <feature name="export">
3
          <profile name="example-export-templates"
4
                  included-types="*"
5
                  regex-file-pattern="^[^~].*"
6
                  filename="~export-@[o]-@[safe-datetime]"
7
                  foldername="~exports"
8
                  export-roles="Resource;Resources;Manager;TeamMember;SuperUser">
9
            <report name="report1" generator="HighstageExcel" filename="@[o]-export-@[safe-datetime]-A" />
10
            <report name="report2" generator="HighstageHtml" filename="@[o]-export-@[safe-datetime]-B" />
11
            <report name="report3" generator="HighstageJson" filename="@[o]-export-@[safe-datetime]-C" />
12
            <report name="report4" generator="HighstageTemplatedExcel" filename="@[o]-export-@[safe-datetime]-D">
13
                <resource name="template" objname="TEMPLATES12496" objtype="doc" filter="latest" />
14
              </report>
15
          </profile>
16
          </feature>
17
      </type>

Note: Make sure each filename is unique. Reports may not use the same filename and will result in an error.

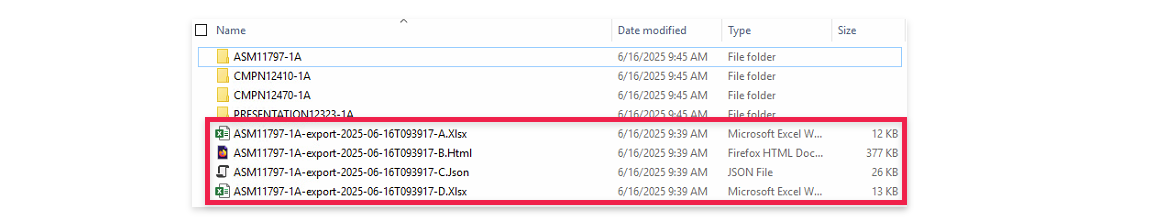

Each completed export package will include 4 generated reports with relevant BOM data:

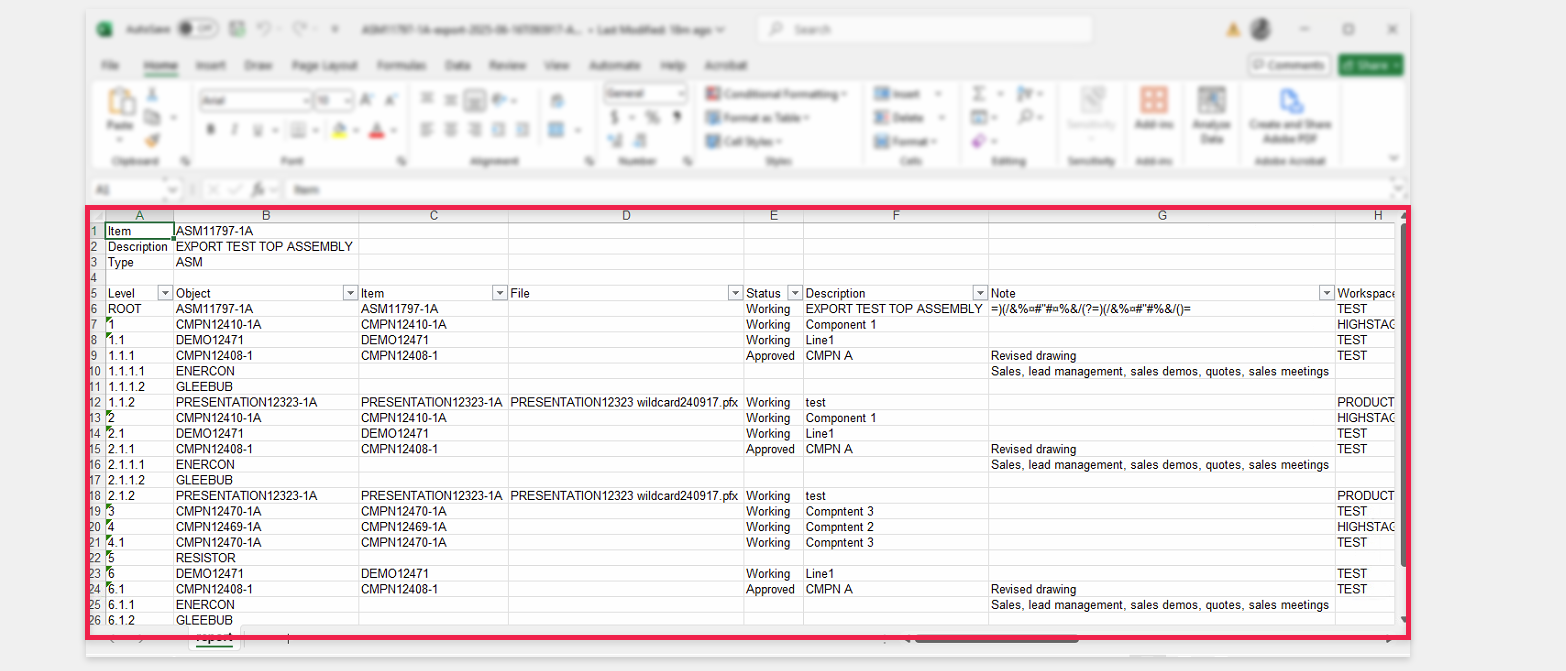

• The HighstageExcel generator creates an .xlsx report with basic BOM information (details, level, objects, and related data):

• The HighstageHtml generator creates a .html report with basic BOM information (details, level, objects, and related data):

• The HighstageJson generator creates a .json file which is a technical report with data about the exported BOM structure. This report is mainly for external systems and is not intended to be human-readable.

Output data: Note: The .JSON report includes the raw database values, not the column titles used in other reports (E.g, the .json report returns 1 instead of working for the status column from Documents).

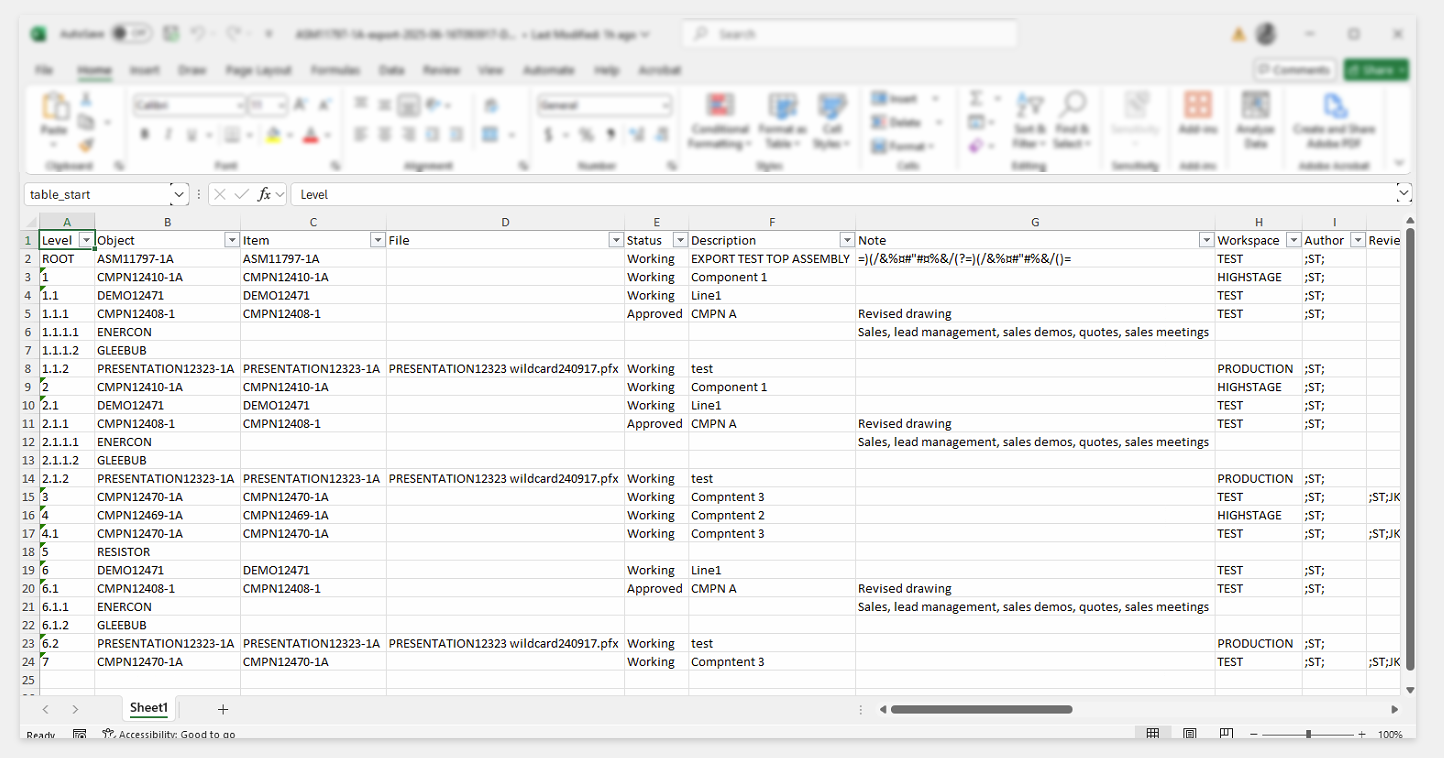

• The HighstageTemplatedExcel generator uses a preexisting Excel file as a template to insert BOM data. This lets you maintain a .xlsx file that we use a a template in Highstage, giving you full control over the report's style, layout, and content:

Setup of Excel templates using the <resource> element:

When using the HighstageTemplatedExcel generator, you must use the <resource> element to assign an .xlsx template for the generated reports. Point it to an existing object in Highstage that contains an .xlsx file. In the Excel file, the system looks for a cell named [table_start] (can be located on any tab):

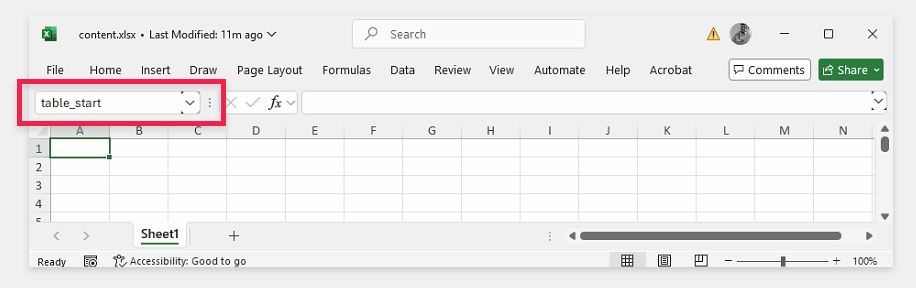

The system uses this Excel file as a template and inserts BOM data starting at [table_start].

Creating and using custom report generators

If you need reports not covered by the standard generators, you can create custom generators. This gives you full control over file types and content, including manipulation, aggregation, and consolidation of data and much more.

You can generate any file type as an export report, as long as you can write the file’s content to a C# stream. The interface provides all the export data you need to build your report exactly how you want it.

Templates

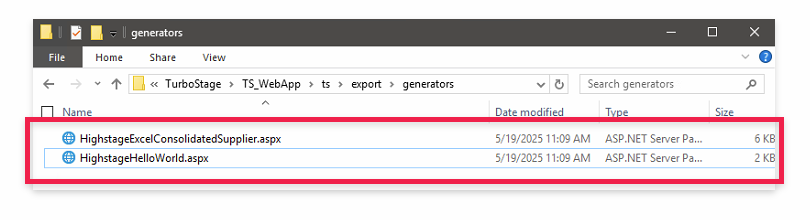

We provide two custom generators as a starting point for creating your own: HighstageHelloWorld.aspx and HighstageExcelConsolidatedSupplier.aspx. You can find them at ../ts_webapp/ts/export/generators:

• HighstageHelloWorld.aspx is a boilerplate generator that creates a .txt file containing the Object ID of the object where the export was initiated from.

• ConsolidatedSupplierReport.aspx generates an Excel report that consolidates supplier data.
  Instead of listing child suppliers separately, their data is shown as columns next to the parent supplier’s columns. Quantities are also aggregated — for example, if a box is made from six plates, and each plate requires four screws, the report will show a total of 24 screws.



Instructions

1. Copy an existing template or create your own .aspx generator, and place it in your dedicated tweak folder.

2. Create your own .aspx generator by implementing TS.Object.Export.IReportGenerator and assigning an appropriate class name for your generator (e.g., CustomExportGenerator):

   ​x
   1
   <%@ Page Language="C#" ValidateRequest="false" EnableSessionState="false" EnableViewState="false" %>
   2

   3
   <%@ Import Namespace="System.Xml" %>
   4
   <%@ Import Namespace="System.IO" %>
   5
   <%@ Import Namespace="TS.Object.Export" %>
   6
   <%
   7
       TS.Xhtml.PageBuilder page = new TS.Xhtml.PageBuilder();
   8
       page.Begin(nameof(CustomExportGenerator));
   9
       page.Append(new CustomExportGenerator().GetType().ToString());
   10
       page.End();
   11
   %>
   12

   13
   <script runat="server">
   14
       public class CustomExportGenerator : TS.Object.Export.IReportGenerator
   15
       {
   16
           public Stream GenerateReport(Tree tree, ExportProfile exportProfile, ReportProfile reportProfile)
   17
           {
   18
               MemoryStream ms = new MemoryStream();
   19
               StreamWriter writer = new StreamWriter(ms);
   20

   21
               writer.WriteLine("Hello World!");
   22
               writer.WriteLine("Root key: "+tree.Root.Object.Key.PrimaryKey);
   23
               writer.Flush();
   24

   25
               return ms;
   26
           }
   27
           public string FileExtension => "txt";
   28
           public bool RequiresTemplate => false;
   29
       }
   30
   </script>
   31



3. Insert an <execute> element into your custom.schema.xml (or any included .xml schema file in your dedicated tweak folder) pointing to the directory of the .aspx generator:

   xxxxxxxxxx
   1
   1
       <execute name="custom-generator " src="~/tweak/customgenerator.exe.aspx" />


   Note: The <execute> element must be placed outside of any <type> element.

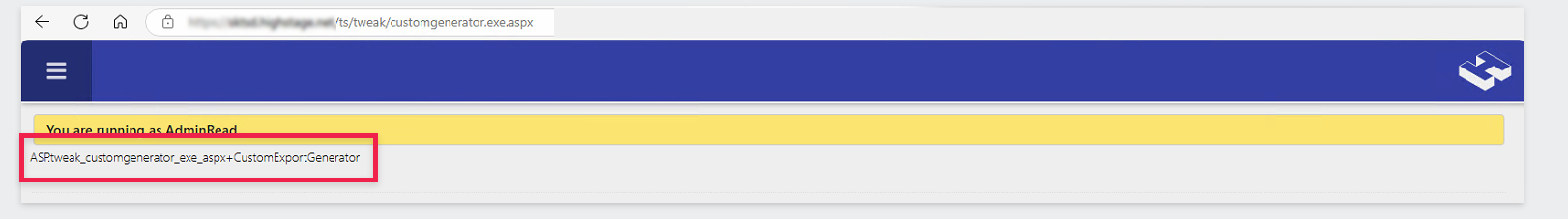

4. To retrieve the name of your custom generator, call the .aspx file in a browser. The name will be displayed like this:

   Note: The generator name will change if you move the .aspx file or rename the class in the file. You will then need to retrieve the updated generator name by calling the .aspx file in a browser.

5. You can now use your generator in a <report> element within any export profile definition:

   xxxxxxxxxx
   9
   1
   <feature name="export">
   2
       <profile ...>
   3
           <report
   4
                   name="custom-report"
   5
                   generator="ASP.tweak_customgenerator_exe_aspx+CustomExportGenerator"
   6
                   filename="custom-report"
   7
           />
   8
       </profile>
   9
   </feature>


6. Restart Highstage for all changes to be applied.

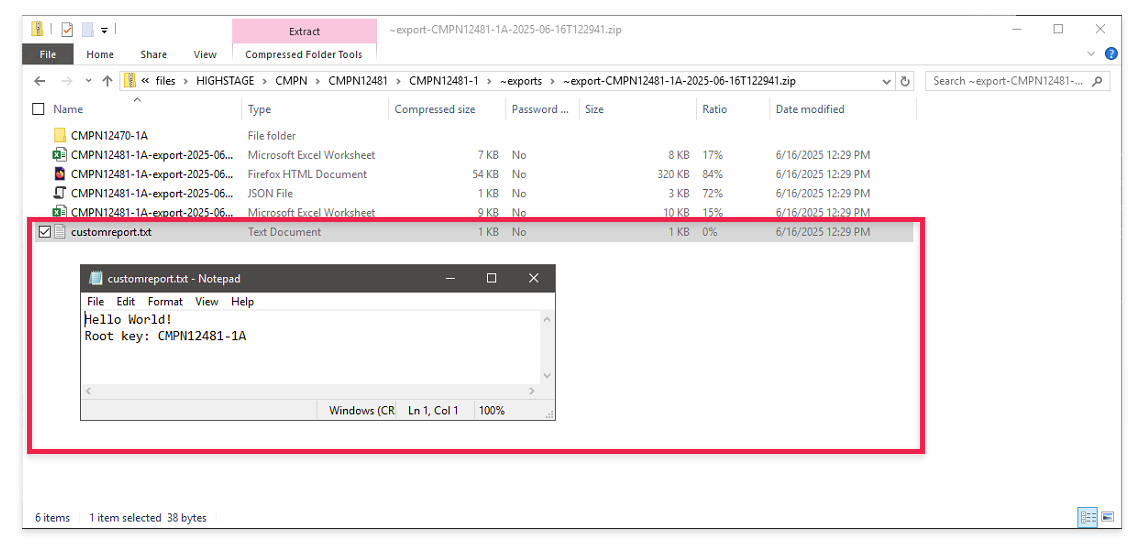

You have now configured your custom report generator and added it to one or more export profiles. When you use these profiles, the export package will include the generated reports:
